Battery-Box











BYD has developed a battery storage line, which is suitable for any application. While the modular LV and HV solutions fit any residential application, the commercial battery is suitable for big implementations.

Applications

Backup and Off-Grid

Off-grid applications and emergency power capability pose no problem for the Battery-Box. The high discharge capacity allows for operation disconnected from the electrical grid. Whether the project supplies power to a remote cabin or it is used as backup for sensitive loads, BYD has the right storage for you.

Self Consumption Optimization

Self consumption of renewable energy is the future. As renewable generation subsidies decrease around the world and electricity prices increase it becomes more economical to consume the energy you generate yourself.



Any Application

From single family home to commercial applications, if you can design it, you can use the Battery-Box to build it. As an installer you want to work with the same common building block but adapt it to the needs of your clients. You can even start small and add capacity at any time during the life of the product.

BYD’s LFP Batteries

The cobalt free Lithium Iron Phosphate (LFP) battery from BYD guarantees maximum safety, life cycle, and power. The robust chemistry and universal design can work in a wide range of temperatures and areas around the world.





Advantages

High Power

extend

Extend Anytime

modular

Easy Installation

parallel

Flexible Configuration

Awards

The Battery-Box meets the highest safety standards like VDE 2510-50 (HVS/HVM/LVS) and receives many awards and seals. In the independent Energy Storage Inspection of the university HTW Berlin, the Battery-Box is ranked as the battery with the highest efficiency on the market.

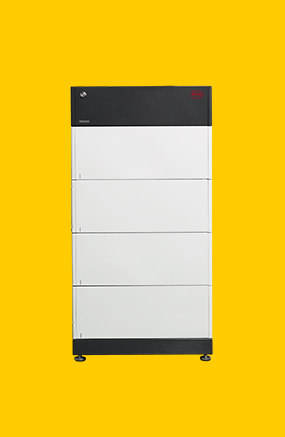

High Voltage

line

HVS / HVM / HVL US

Battery Box Premium HVS

One Battery-Box Premium HVS is composed of 2 to 5 HVS battery modules that are connected in series to achieve a usable capacity of 5.1 to 12.8 kWh. Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVS allows a maximum capacity of 38.4 kWh. Ability to scale by adding HVS modules or parallel HVS stacks later.

HVS 5.1

HVS 7.7

HVS 10.2

HVS 12.8

Battery Box Premium HVM

One Battery-Box Premium HVM is composed of 3 to 8 B-Plus HVM 2.71 battery modules that are serially connected to achieve a usable capacity of 8.1 to 21.7 kWh. Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVM allows a maximum capacity of 65.0 kWh. Ability to scale by adding HVM modules or parallel HVM stacks at anytime.

HVM 8.3

HVM 11.0

HVM 13.8

HVM 16.6

HVM 19.3

HVM 22.1

Battery Box Premium HVL US

One Battery-Box Premium HVL is composed of 3 to 8 HVL battery modules that are connected in series to achieve a usable capacity of 11.5 to 30.7 kWh. Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVL allows a maximum capacity of 92.1 kWh. Ability to scale by adding HVL modules or parallel HVL stacks later.

HVL 11.5

HVL 15.4

HVL 19.2

HVL 23.0

HVL 26.9

HVL 30.7

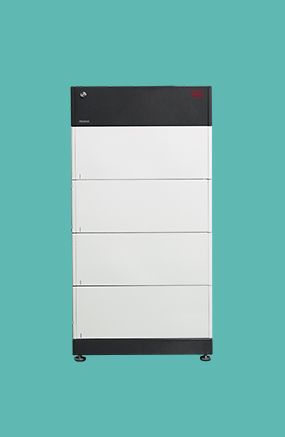

Low Voltage LVS

line

LVS

One Battery-Box Premium LVS is a lithium iron phosphate (LFP) battery pack for use with an external inverter. A Battery-Box Premium LVS contains between 1 to 6 battery modules LVS stacked in parallel and can reach 3.84 to 23.0 kWh usable capacity. Connect up to 16 Battery-Box LVS 15.4 in parallel for a maximum size of 245.8 kWh. Ability to scale by adding LVS modules or parallel towers of 1 to 4 modules later.

LVS 3.8

LVS 7.7

LVS 11.5

LVS 15.4

LVS 19.2

LVS 23.0

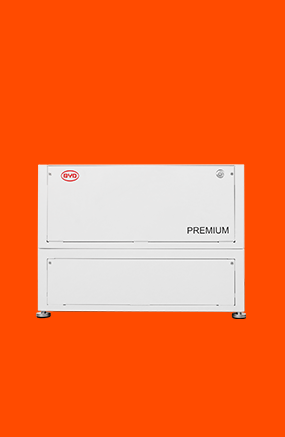

Low Voltage LVL

line

LVL

The BYD Battery-Box Premium LVL is a lithium iron phosphate (LFP) battery for use with an external inverter. Thanks to its control and communication port (BMU), the Battery-Box Premium LVL scales to meet the project requirements, no matter how large they may be. Start with Battery-Box Premium LVL15.4 (15.4 kWh) and extend anytime to 983 kWh using parallel interconnection of up to 64 batteries. Two LVL batteries can be stacked in top of each other.

LVL 15.4

2 x LVL 15.4
